RB-E type seriesSolvent Distillation Recycling System
Save resources and cut costs by treating your industrial waste.
Reduces industrial waste by... ...recycling used cleaning agents for parts, molds, jigs, etc. produced from various manufacturing processes. ...recycling used solvents for coating, printing and resin molding.
HOMEApplicable Solvents
Toluene,・
xylene・
methyl ethyl ketone・
methyl alcohol・
ethyl alcohol・
isobutyl alcohol・
isopropyl alcohol・
ethyl acetate・
butyl acetate・
acetone・
trichloroethylene・
perchloroethylene・
methylene chloride etc.
Solvents that are commonly used in the process.
Solvents above and mixtures of these solvents can be recycled.
Design Concept
Safety Measures
- Uses indirect heating through an oil bath.
- Uses atmospheric distillation that does not affect the pressure in the device.
- Prevenst blockage of gas passages by foam liquid waste.
-
Countermeasures to deterioration of thermal oil.
- Designed to prevent water from entering jacket.
- Equipped with overheating prevention control.
- Equippped with alarm to notify the need for exchange.
Safety measures for controlling electrical components
- Output controlled by thyristor
- Terminals include water failure alarms
- Control panels are waterproof and blast-resistant under internal pressure
- Standard temperature sensors and solenoid valves are blast-resistant
- Electric heaters feature heightened safety ※Other safety features for handling are included
Functions and performance
Residues are easier to process since recycling process occurs every 18L container. (except Type RB-100E )
Use of double-sided heat transfer surfaces and plate coils with the 18L containers balances evaporation and condensation.
Benefits
・High-quality solvents will be produced by this recycling system
・Reduces cooked-on residues and foul odors.
・Reduces corrosion through use of chlorine solvents.
・Viscous waste liquids can be reprocessed.
Compact size only takes small space.
Through the use of plate coils, refrigeration machines can be used to force cooling (for example, to recycle methylene chloride)
Solvent distillation recycling system Type RB-20E
| Product name | Solvent distillation recycling system Type RB-20E | |
|---|---|---|
| Recycling Process | Batch distillation of 18L container |
|
| Heating System | Indirect heating through an oil bath |
|
| Heat Source | 2.0 kW electric heater |
|
| Recycling Ability | 18L container / 3-4 hours |
|
| Cooling System | Plate coil automatically pours in water |
|
| Power Source | AC single-phase 200V 50/60Hz |
|

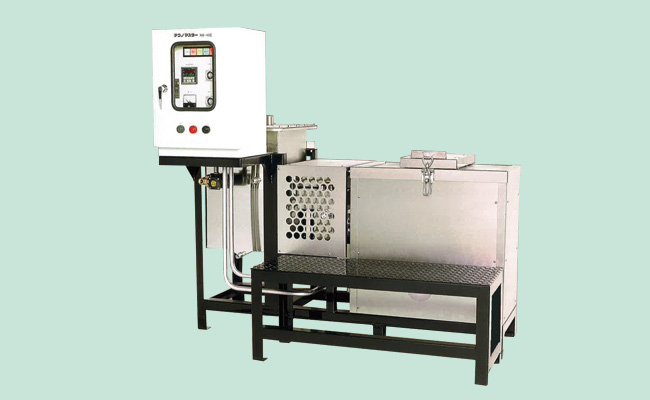

Solvent distillation recycling system Type RB-40E"
| Product name | Solvent distillation recycling system Type RB-40E | |
|---|---|---|
| Recycling Process | Batch distillation of 18L container （May use optional 50L container) |
|
| Heating System | Indirect heating through an oil bath |
|
| Heat Source | 5.0 kW electric heater |
|
| Recycling Ability | 18L container / 3-4 hours (For optional container- 50L container/4-5 hours) |
|
| Cooling System | Plate coil automatically pours in water |
|
| Power Source | AC single-phase 200V 50/60Hz |
|
| Heat Source | 10 kW electric heater |
|
Solvent distillation recycling system Type RB-80E
| Product name | Solvent distillation recycling system Type RB-80E | |
|---|---|---|
| Recycling Process | Batch distillation of 18L container (Option: may use two 50L container) |
|
| Heating System | Indirect heating through an oil bath |
|
| Heat Source | 10 kW electric heater |
|
| Recycling Ability | 18L container / 3-4 hours (For optional use: two 50L container/ 4-5 hours) |
|
| Cooling System | Plate coil automatically pours in water |
|
| Power Source | AC single-phase 200V 50/60Hz |
|
| Heat Source | 10 kW electric heater |
|
optional

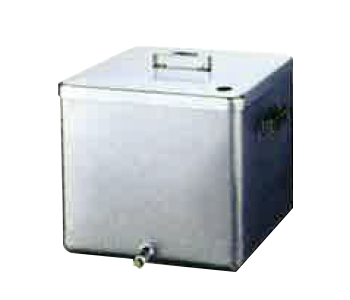

50ℓInner container

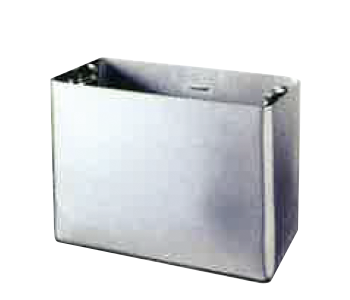

Type RB-40Einner container

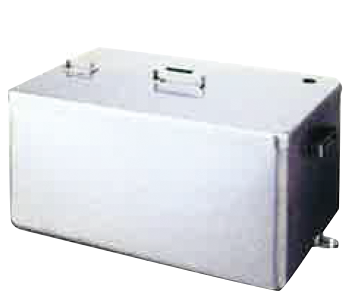

Type RB-80Einner container
・Water failure alarm system
・Automatic cooling water circulation apparatus
・50L waste container(inner container)(Type RB-40)
・50L recycled fluid container(Reciever)(Type RB-40)
・100L recycled fluid container(Reciever)(Type RB-80)
-
